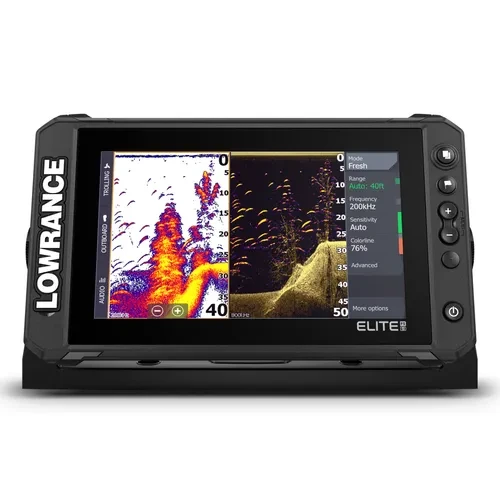

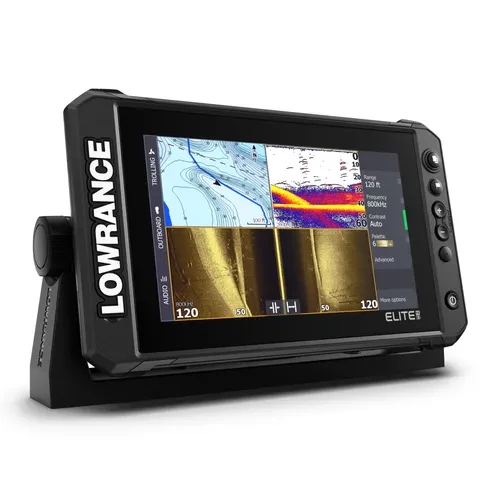

Lowrance Elite FS 9 with Active Imaging 3-in-1

Lowrance Elite FS 9 – Powerful and Versatile Sonar Plotter

The Lowrance Elite FS 9 is an advanced sonar plotter that gives you access to a full range of sport fishing tools and the latest technology from Lowrance. With the Elite Fishing System (FS) you get support for ActiveTarget™ live sonar, Active Imaging™ 3-in-1 and broad compatibility with chart options such as C-MAP and Navionics®, giving you optimal conditions for successful fishing.

The integrated Active Imaging™ 3-in-1 transducer combines SideScan, DownScan and CHIRP sonar to deliver sharp and detailed underwater images. With the FishReveal™ feature, fish become clearer on the sonar screen, making it easier to identify and locate your target fish.

Elite FS 9 is equipped with a high-resolution 9-inch touch screen with multitouch, which makes navigation, settings and map display smoother and more intuitive. With dimensions of 260 mm x 150 mm x 91 mm, the unit has a compact and practical design that fits most boats.

For advanced navigation, the Elite FS 9 supports C-MAP Genesis Live, allowing you to create detailed charts in real time. It is also compatible with C-MAP® Easy Routing and Navionics® Autorouting, which simplifies route planning and ensures a smooth navigation experience.

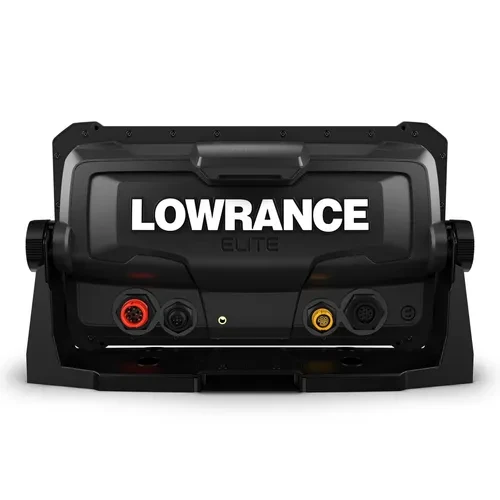

With built-in connectivity via Wi-Fi, NMEA 2000® and Ethernet, the device can be easily integrated with other boating equipment, such as Power Pole® anchors and Ghost® trolling motors, giving you full control directly from the touchscreen.

Specifications:

• Dimensions: 260 mm x 150 mm x 91 mm
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 2.0A @ 13V DC at full brightness
• Mounting: Gimbal Bracket or Dash Flush Mount
• Screen: 9-inch high-resolution touch screen with multitouch

Contents in the package:

• Power cord (power only)
• Fuse and fuse holder
• Active Imaging™ 3-in-1 sonar transducer
• HDS-9 LIVE / Elite FS™ 9 Bracket
• Elite FS™ 9 Sun Protection
